Insulation Board Fixing Washer Discs For Easy Fitting of Insulation Sheets
Specification Of Board Fixing Washer Discs
Each 35mm fixing disc is designed for the fitting of all types of insulation board. Made from
galvanised steel these fixing discs are strong and corrosion resistant so ideal for holding all
types of insulation back to walls and onto ceilings.
|
material
|
thickness
|
diameter
|
center hole
|
|
galvanized steel
|
0.7mm
|
35mm,30mm
|
5mm
|
|
stainless steel
|
0.7mm
|
35mm,30mm
|
5mm
|
|
plastic
|
0.7mm
|
30-65mm
|
5mm
|
The Advantages Of The Tile Backer Board Fixing Washer Discs
The washers are easy to fix and have been specially designed for use with our tile
backer boards in three specific ways.

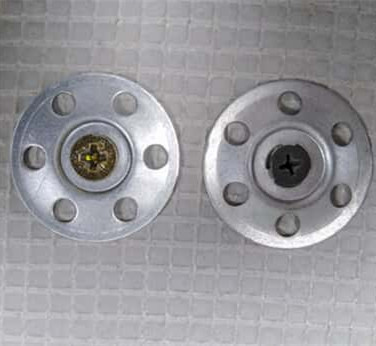

1: The discs have a counter sunk mid-section to allow the screw head to pull into the board
but the outer rim of the disc to remain flush with the board surface. This is to maintain the flat
board surface ready for easy unhindered application of the subsequent layers.
2: The discs have a perforated surface to maintain maximum board surface exposure as
standard adhesives and plasters are not designed to be fixed to flat plastic or metal surfaces.
By perforating the fixing disk this allows the adhesive or plaster to adhere to the board surface
minimizing the risk of surface de-lamination or damage.
3: The discs are galvanized to protect them from corrosion and minimize any chance of
degradation over time.

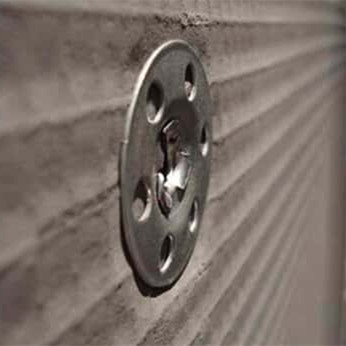

Application Of The Insulation Board Fixing Washer Discs
Tile backer board fixing washer discs are used to fix tile backer boards to walls and floors.
We recommend that you use 12 discs per 1200 x 600mm insulation board.
This is merely a guide only. And depending on the type, thickness, sub surface and final
covering on the board. It is the installers responsibility to use the correct number of discs to
hold the board in place.
Package Of The Insulation Board Fixing Washer Discs
1. 100pcs per bag, 100 bags per carton
2. as your requirement
HUIHAO Metal Products Company -Insulation Pins And Washers Manufacture
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. can you supply design service?
yes, we can supply CAD drawing
6. can you supply installation guide?
yes, installation guide is avable for every order.
7. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
8. Advantage Of HUIHAO Parts:
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
